Customize Outdoor Galvanized Anti Corrosion Coating Industriel Dual Powder Distribution Box

Customize Outdoor Galvanized Anti Corrosion Coating Industriel Dual Powder Distribution Box
Customize Outdoor Galvanized Anti Corrosion Coating Industriel Dual Powder Distribution Box Customize Outdoor Galvanized Anti Corrosion Coating Industriel Dual Powder Distribution Box Customize Outdoor Galvanized Anti Corrosion Coating Industriel Dual Powder Distribution Box Customize Outdoor Galvanized Anti Corrosion Coating Industriel Dual Powder Distribution Box Customize Outdoor Galvanized Anti Corrosion Coating Industriel Dual Powder Distribution Box Customize Outdoor Galvanized Anti Corrosion Coating Industriel Dual Powder Distribution Box

Large Image :  Customize Outdoor Galvanized Anti Corrosion Coating Industriel Dual Powder Distribution Box

Product Details:
Place of Origin: Shandong, China
Brand Name: Zhongren
Model Number: ZR-SDY
Payment & Shipping Terms:
Minimum Order Quantity: 1 pieces
Price: $5,699/set Customized products
Packaging Details: Wooden case or carton
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T
Contact Now Chat Now

Customize Outdoor Galvanized Anti Corrosion Coating Industriel Dual Powder Distribution Box

Description
Application: Industrial Name: Dual-power Distribution Box
Color: Customer Request Keyword: Distribution Box
Usage: Indoor-Outdoor Warranty: 1 Year
MAQ: 1 OEM: Offered
Highlight:

custom galvanized outdoor distribution box

,

industrial dual powder electrical box

,

anti corrosion coating electrical supply box

Product Description

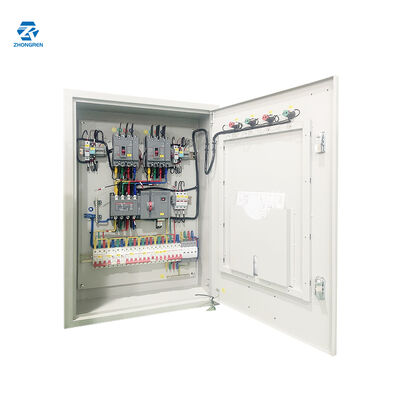

The description of the Dual Power Distribution Box's structure: The ZR-SDY dual-powerdistribution box is a fully enclosed indoor integrated equipment composed of circuitbreakers, dual-power automatic transfer switches, busbars, enclosures, insulatingsupports, etc.

Customize Outdoor Galvanized Anti Corrosion Coating Industriel Dual Powder Distribution Box 0



Cautionary Notice

All the products are custom-made. Before placing the order, please communicate in detail with the customer service about your
specific requirements (such as specifications, parameters, functions, etc.). We will provide an exclusive solution based on your
needs and confirm the price. The production cycle of custom-made products depends on the complexity of the order. Thank you for
your understanding and
cooperation!

Customize Outdoor Galvanized Anti Corrosion Coating Industriel Dual Powder Distribution Box 1

3.1 Switching electrical appliances and enclosures (model specifications / material names)
Number Component name Type specification Quantity
1 Moulded case circuit breaker(MCCB) NM1 - 125S/3300 125A 4
    (Icu:35kA/Ics:17.5kA) 4
2 Dual power automatic transfer switch GLQ01 - 630/4 400A 1
    PC level 1
3 Body case XL body case (Frame panel thickness: 2.0mm, Door panel thickness: 1.5mm, Side panel thickness: 1.0mm) 1
3.2 Busbars and Insulated Conductors (Material Names, Model Specifications)
Number Component name Name of the material Type specification
1 Main bus-bar Copper strip (bare copper) TMY - 6mm×40mm
2 Main switch outlet Copper strip (bare copper) TMY - 6mm×40mm
3 Busbar (N) Copper strip (bare copper) TMY - 6mm×40mm
4 Busbar (PE) Copper strip (bare copper) TMY - 4mm×40mm
3.3 Insulation support components and related connection parts (material name, model specification)
Number Component name Name of the material ype specification
1 Insulation support component DMC insulator M8



Customize Outdoor Galvanized Anti Corrosion Coating Industriel Dual Powder Distribution Box 2

Customize Outdoor Galvanized Anti Corrosion Coating Industriel Dual Powder Distribution Box 3

Customize Outdoor Galvanized Anti Corrosion Coating Industriel Dual Powder Distribution Box 4

Customize Outdoor Galvanized Anti Corrosion Coating Industriel Dual Powder Distribution Box 5Customize Outdoor Galvanized Anti Corrosion Coating Industriel Dual Powder Distribution Box 6Customize Outdoor Galvanized Anti Corrosion Coating Industriel Dual Powder Distribution Box 7

Customize Outdoor Galvanized Anti Corrosion Coating Industriel Dual Powder Distribution Box 8



Customize Outdoor Galvanized Anti Corrosion Coating Industriel Dual Powder Distribution Box 9Customize Outdoor Galvanized Anti Corrosion Coating Industriel Dual Powder Distribution Box 10
