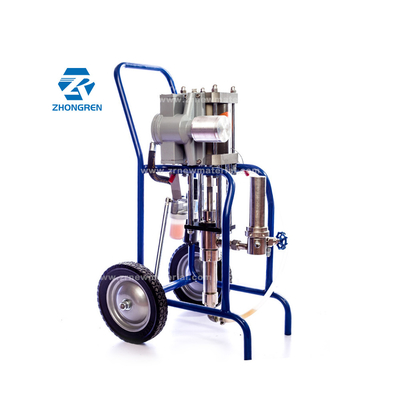

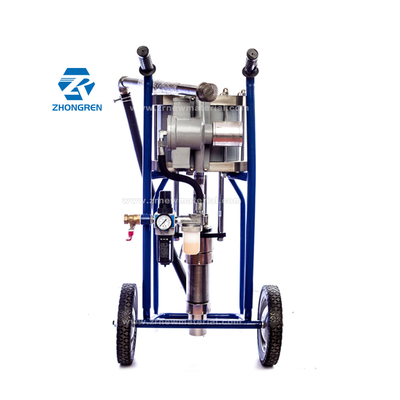

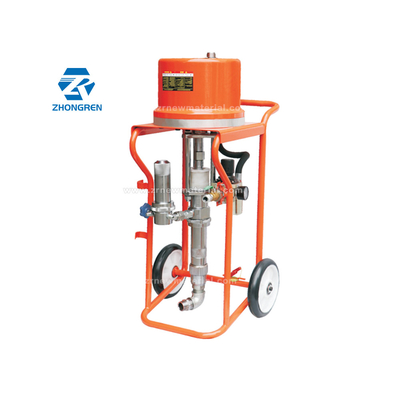

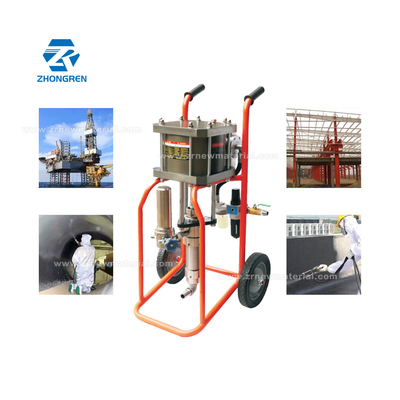

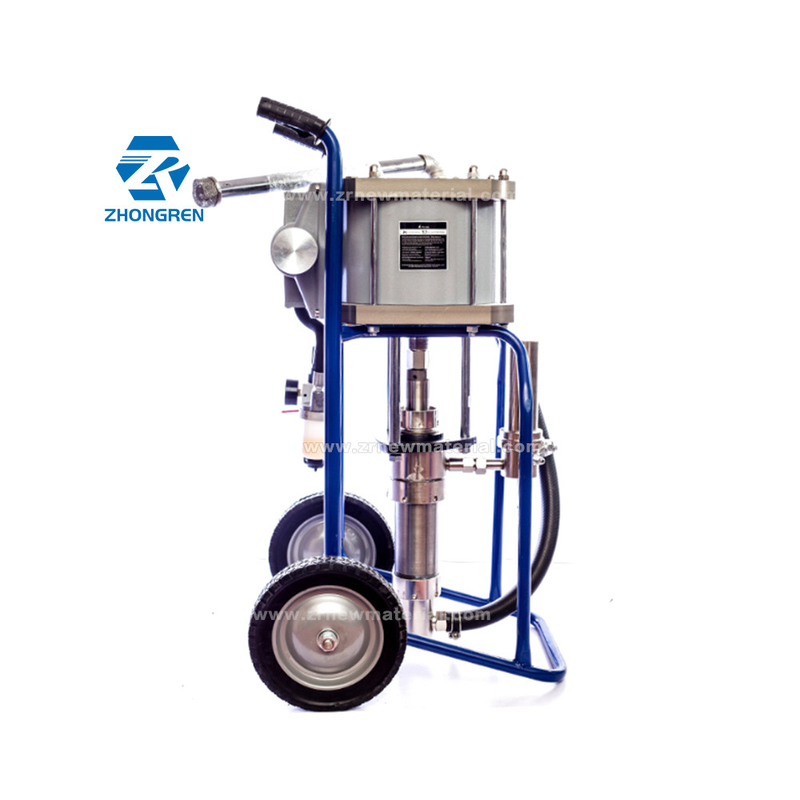

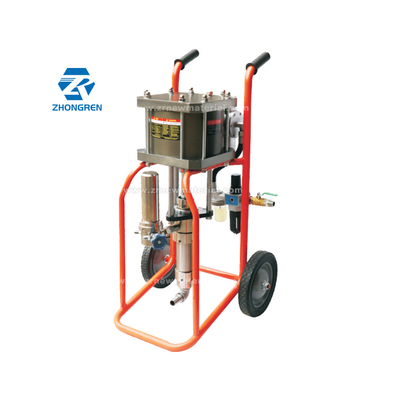

Waterproof Spraying Pneumatic Airless Sprayer Railway Track Spraying Pneumatic Paint Pump
Product Specifications
| Grade |
Industrial |
| Power Source |
Pneumatic |
| Customized Support |
OEM, OBM, ODM |
| Place of Origin |
Shandong, China |
| Brand Name |
Zhongren |
| Model Number |
ZRM-1234/ZRM9C/ZRM-2546/ZRM-2832/ZRM-2840/ZRM-Q2 |
| Type |
Airless Spray Gun |
| Application |
Paint Spray Gun |
| Usage |
Nuclear and conventional power facilities/Pipeline/Metals and mining |
| Feature |
High Spraying Effect |
| MOQ |
1pcs |
| Pressure Ratio |
32:1-46:1 |
| Cylinder Bore |
125-280mm |
| Packing |
Wooden box |
Product Description
High Performance Pneumatic Airless Sprayer for Fast and Reliable Coating for Waterproof Spraying Railway Track Spraying.
The single component pneumatic airless sprayer offers the ultimate combination of power and portability, giving you the ability to spray tough materials in the most challenging situations and approved for hazardous locations.
These High Quality, High Volume and High Pressure pneumatic airless sprayers are ideal for protective coating projects like bridges, ship tanks, or touch-up projects. The system provides exceptional output values, pressure ratios and pumping capacities to outperform and outlast all other sprayers in its class.
They easily handle the toughest protective coatings, corrosion control, waterproofing and fireproofing materials. These high-pressure, high-performance pumps include a well proven, reliable air exchange valve that provides quick changeover while reducing pulsation.
Pneumatic Spraying Airless Pumps - Protective Coating
Zhongren produces spray painting groups and units for industrial finishing and protective coatings. Our high-pressure pneumatic sprayers, available in different models and configurations, are suitable for using a wide range of medium-solid paint products and protective materials at high thickness.
Airless Equipment Capabilities
- Spray paint products at ambient temperature, diluted if necessary to obtain the right viscosity
- Handle heated materials to decrease viscosity, allowing atomization at lower pressure
- Recirculate heated product in high pressure hoses to maintain temperature during spraying pauses
- Reduce working pressure by 50% when using heated products (normal pressure can reach up to 500 bar)
Model Specifications
| Model |
ZRSM-PA1234 |
ZRSM-PA9C |
ZRSM-PA2546 |
ZRSM-PA2832 |
ZRSM-PA2840 |
ZRSM-PAQ2 |
ZRSM-PAQ4 |
ZRSM-PA6918 |
| Weight |
36KG |
80kg |
65KG |
88KG |
88KG |
88KG |
88KG |
88KG |
| Cylinder bore(MM) |
125 |
240 |
250 |
280 |
250 |
280 |
250 |
250 |
| Use compressed air |
0.3-0.6 |
0.3-0.7 |
0.3-0.7 |
0.3-0.6 |
0.3-0.6 |
0.3-0.6 |
0.3-0.6 |
0.3-0.6 |
| Pressure ratio |
34:1 |
32:1 |
46:1 |
32:1 |
40:1 |
48:1 |
48:1 |
48:1 |
| No-load flow(L/min) |
5.6 |
51 |
20.8 |
38 |
30 |
40 |
46 |
36 |
High-Volume, High-Pressure Pumps: Engineered for exceptional performance in waterproofing, fireproofing, and other protective coatings.
Exceptional Pump Longevity and Efficiency: Specifically crafted for heavy-duty spraying applications, our AtlasPro Pump Modules are built to withstand the most challenging conditions while incorporating the time-tested V-Packing set sealing design for consistent, reliable performance.
Frequently Asked Questions
Are you a trading company or manufacturer?
We are the manufacturer and help customers to buy more products together to export.
Do you have any certificates?
Yes, we have CE certificates.
About your products, could you do OEM?
Yes, OEM is workable for us, but with MOQ.
How long is delivery time?
7-15 days after confirmation of the order.
How to delivery the goods?
1. Delivery to your shipping agent's warehouse
2. By Express for small parcel
3. By Sea or By air to your door or to nearest seaport for bulk
Have you guarantee for your products?
Normally we provide one year guarantee for Motor and circuit board. When ordering can ready some spare parts together. For long-term customers, we will extend the warranty term.
What can you buy from us?
All kinds of spraying equipment for building construction, Accessories, Power tool
Why should you buy from us not from other suppliers?
We have rich experience in export transportation, strict requirements for product production, strong sense of team service, and solve customer's detailed work.
